Product Description:

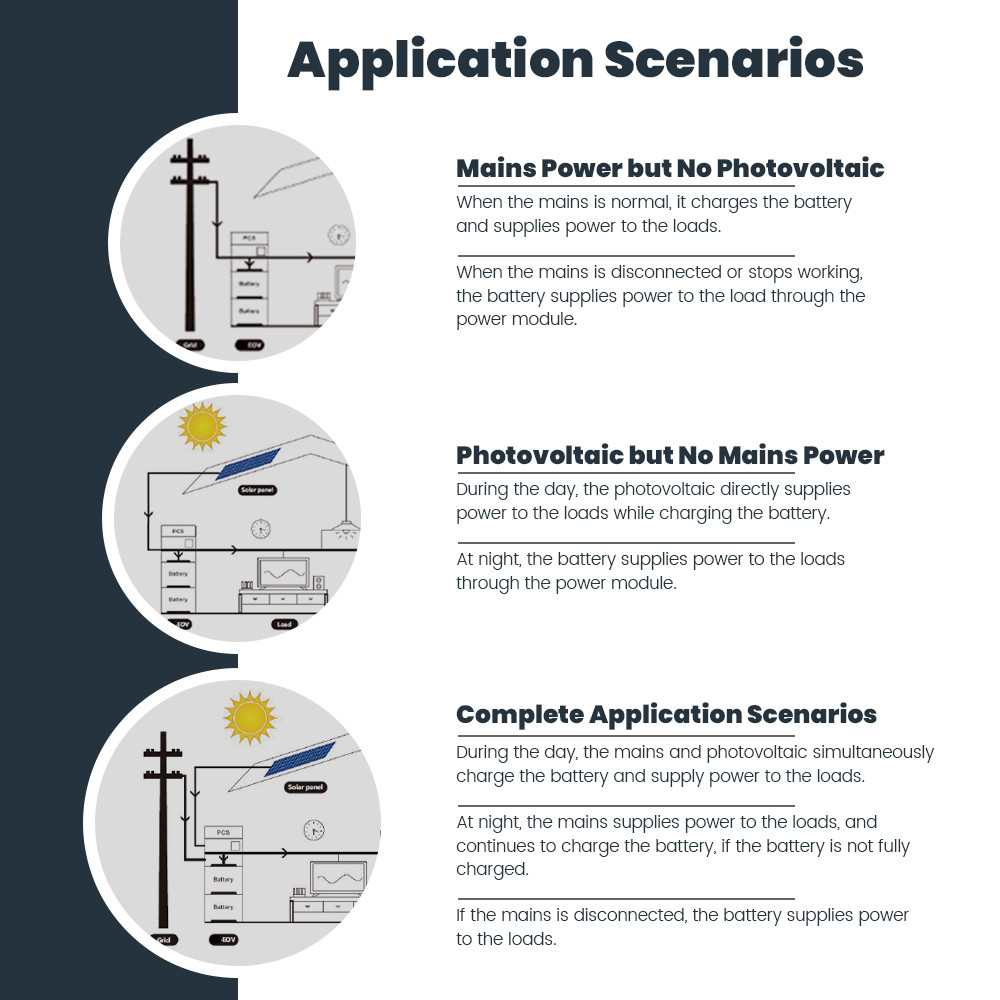

The EOH10C Solar Energy Storage System is a high power solar home system with 10KW pure sine wave inverter , with super long life LFP lithium battery pack . Thanks to the EOH10C , it will can parallel 9 units of battery pack that store up to 460.8KWH in the battery pack to make us no worry for the grid power cut off problem . With the 3 working mode , make it workable with or without the solar panel , keep your house never worry about the power supply .

Features:

• Product Name: Solar Energy Storage System
• Storage Temperature Range: -25℃ ～ 60℃
• Parallel Quantity: 9
• Power module size: 655*353*328mm
• Designed Battery Life-span: 6000 Recycles
• Maximum Peak Power: 20KVA

This Solar Energy Storage System is perfect for solar system home fitting, home solar power system, and any other application requiring reliable and efficient energy storage.

Technical Parameters:

Inverter model
Item No.	EOH05C
Rated Output Power	10000W
Max. Peak Power	20000KVA
Load Capacity of Motor	6HP
Wave Form	Pure Sine Wave
Rated Output Voltage	230Vac (single phase)
Solar Charge Type	MPPT
Max.Input Solar Power	5500W+5500W
Max. Solar Open Circuit Voltage	500V+500V
GRID/GENERATOR INPUT Voltage Range	90~280Vac
Max. Solar Charging Current to battery	200A
Max. Grid/Generator Charging Current to battery	120A
Gross Weight	33.1kg(72.97lb)
Dimension	655*353*210 (2.14*1.15*0.69ft)
Protection Degree	IP20
Cooling Mode	Natural cooling
Safety	EN61000, C2 , CE(EN62109-1)
Battery Model
Battery Power	5.12KWH
Rated Voltage	51.2V
Rated Capacity	100Ah
Battery Type	LiFePO4
Cycling Lifespan	6000
Max. Parallel Capacity	9 units (up to 46.08kWh)
Gross Weight	46.6kg(102.735lb)
Dimension	655*353*210 (2.14*1.15*0.69ft)

This Solar Energy Storage System product is suitable for a 10kw solar system or a solar system 10kw complete. It can be used for solar system home fitting.

Applications:

One of the most popular applications of the Melin Sunergy EOH10C is for a 10kw solar system. This system is perfect for homes or businesses that require a large amount of energy to power their daily operations. With its maximum peak power of 20KVA, this solar energy storage system can provide continuous power for various appliances and devices.

The Melin Sunergy EOH10C is also an excellent choice for a solar battery house system. It can store energy generated from solar panels during the day and use it to power your home or business at night. This feature is especially useful for areas that experience frequent power outages or those who want to reduce their reliance on the grid.

If you are looking for a solar system 10kw complete with all the necessary components, the Melin Sunergy EOH10C is an excellent option. It comes with a battery module size of 655*353*205mm, and its MPPT voltage range of 500Vdc+500Vdc ensures optimal performance even in low light conditions.

The Melin Sunergy EOH10C Solar Energy Storage System is designed to operate in a wide temperature range, from -15℃ to 55℃. It can also withstand storage temperatures ranging from -25℃ to 60℃, making it suitable for use in harsh environments.

This product has been certified by CE, FCC, and UKCA, ensuring its safety and reliability. It has a minimum order quantity of 1 and can be delivered within 15 days. Payment terms include TT and West Union, and the supply ability is 1000pcs per month.
